Design and Fabrication Services
“Custom Solutions For
Fluid System Assemblies?
Leave It To Swagelok.”
Swagelok is your go-to partner for every aspect of fluid system assemblies. Our experienced experts will fabricate a custom assembly solution for you, with testing, inspection, and packaging all included—and backed by Swagelok’s Limited Lifetime Warranty.
Large. Small. We Do Them All.
From small or large assemblies, a complete panel or enclosure, Swagelok can do it all, with our own high-quality fluid system components. We also do wiring, automation, transmitters, relays, pumps, and more. Best of all, Swagelok custom finished assemblies lower costs by reducing in-house inspections, QA effort, component handling, rework & scrap, and assembly time.
What Can Swagelok Do For You? Plenty!
- Tube fittings, threaded end connections, VCR® and VCO® face seal fittings, welded, and other seals
- Push-on and thermoplastic hose assembled to length
- Tube bending
- Fractional sizes: 1/16 through 2 inch
- Metric sizes: 6 mm through 30 mm
- Industrial pressure gauge liquid filling
- Glycerin or low temperature glycerin
- Modular platform component assembly
- Plastic tube flaring
- Orbital tube welding
Save Time With Standard & Configurable Assemblies.
Swagelok design, fabrication, and assembly experts work with businesses across the globe to add efficiency and reliability to their operations. We offer a wide range of essential services:
Swagelok Grab Sampling.
We provide safe, efficient sample capture while meeting your specific plant application needs. The panels are available in a variety of configurations and advanced features.
Swagelok Seal Support Systems.
Offered as kits and assemblies, Swagelok systems reliably supply either gas or liquid to the mechanical seal to regulate the environment and boost longevity.
Gas Distribution Systems.
Swagelok pros will your evaluate existing gas distribution systems and design and build configurable gas delivery systems to help protect system operators, increase process uptime, and improve process accuracy and repeatability.
Analytical Subsystems (PrESS).
Swagelok subsystems (PrESS) minimize system footprints, simplify system design, and promote representative samples and accurate analytical results.
From fast loops, field stations, calibration and switching modules, to sample probes, and fluid distribution headers, our systems bring efficiency to your whole operation.
Design Support. As Much Or As Little As You Need.
Let Swagelok fluid system design experts guide you through the entire solution development process. We can follow your existing design. Or work with our tech team to develop a new design, with these comprehensive services:
- CAD drawings
- Piping and instrumentation design (P&ID)
- Component selection and sourcing
- Bills of materials (BOM)
- Professional services, like bending and welding
- System performance testing
Get Your Swagelok Custom Solution Rolling
Just call 303-232-8844 to start the conversation with an in-house Engineer., Or email us at info@denver.swagelok.com
A Small Sample Of The Big Benefits Of Swagelok Custom Solutions.

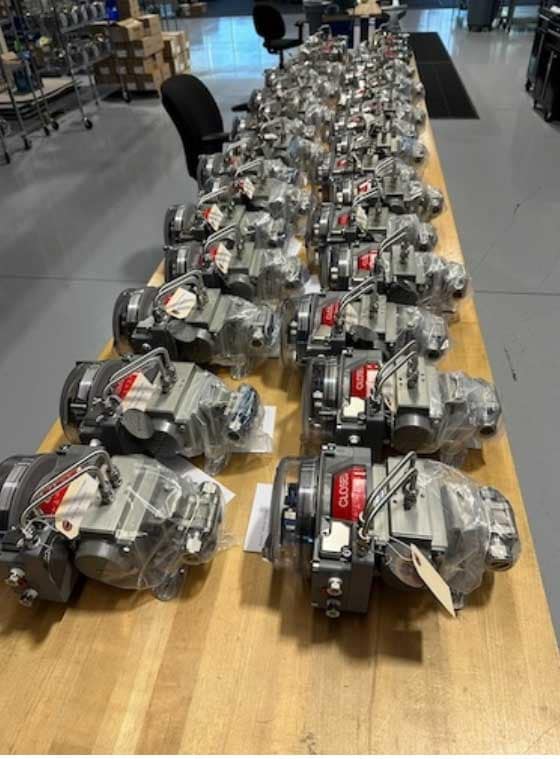

“We Needed Actuated
Ball Valve Assemblies ASAP!”
Swagelok Delivered 176,
Made To Order.
A life sciences company needed large-scale construction for gas distribution of large vessels, reactors, pumps and other components. Their go-to choice? Swagelok. Our tech experts designed and engineered the valve package, delivering a flexible gas distribution solution on time and under budget.
Get Your Swagelok Custom Solution Rolling
Just call 303-232-8844 to start the conversation with an in-house Engineer., Or email us at info@denver.swagelok.com

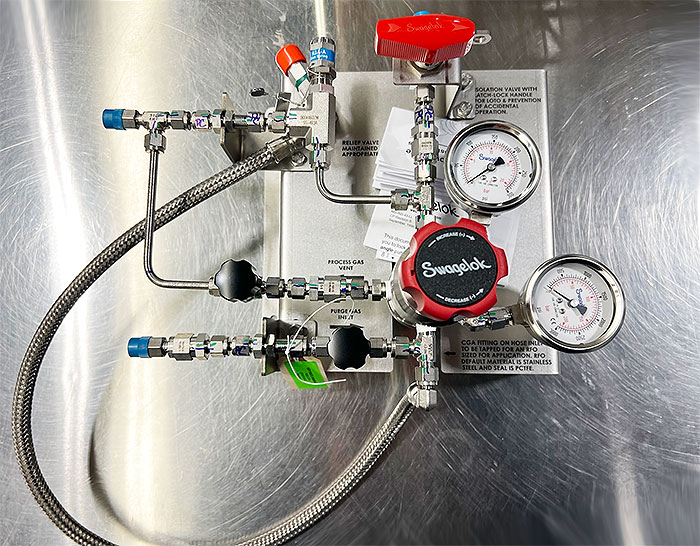

“Flammable gas
distribution panels?”
Swagelok makes ‘em.
A Swagelok client needed distribution panels to facilitate gas delivery in labs. We collaborated with the company and developed a flexible design for different pressures and medias, following the same basic layout. One more example of how partnering with Swagelok can make even complex applications easier and cost efficient.
Get Your Swagelok Custom Solution Rolling
Just call 303-232-8844 to start the conversation with an in-house Engineer., Or email us at info@denver.swagelok.com

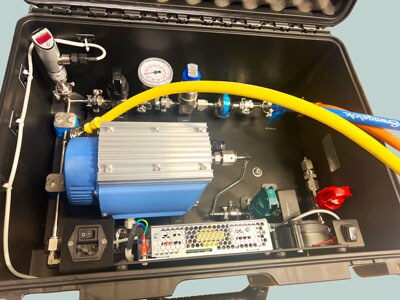

Swagelok. To Go.
Portable Field Service Cases.
Another Reason To Count On Us.
Swagelok designs, builds and tests durable, portable field service case for applications across a wide range of industries: pressure testing cases, leak checking cases, fluid sampling cases, and equipment troubleshooting cases. No wonder Swagelok is your go-to resource for portable technology.
Get Your Swagelok Custom Solution Rolling
Just call 303-232-8844 to start the conversation with an in-house Engineer., Or email us at info@denver.swagelok.com

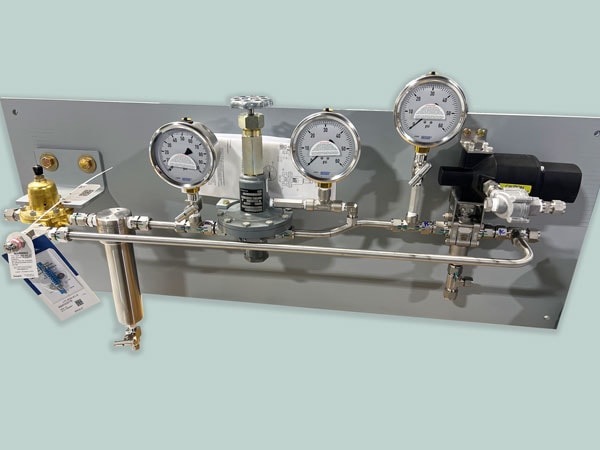

“Know Anybody Who
Makes Fuel Skids?”
Sure. Call Swagelok.
When a global technology giant needed fuel skids to retrofit existing compressors, they did what every smart company does: They called Swagelok. Our engineers designed flexible fuel skids that allowed the company to control fuel feed to the compressor, which ultimately reduced emissions.
Get Your Swagelok Custom Solution Rolling
Just call 303-232-8844 to start the conversation with an in-house Engineer., Or email us at info@denver.swagelok.com

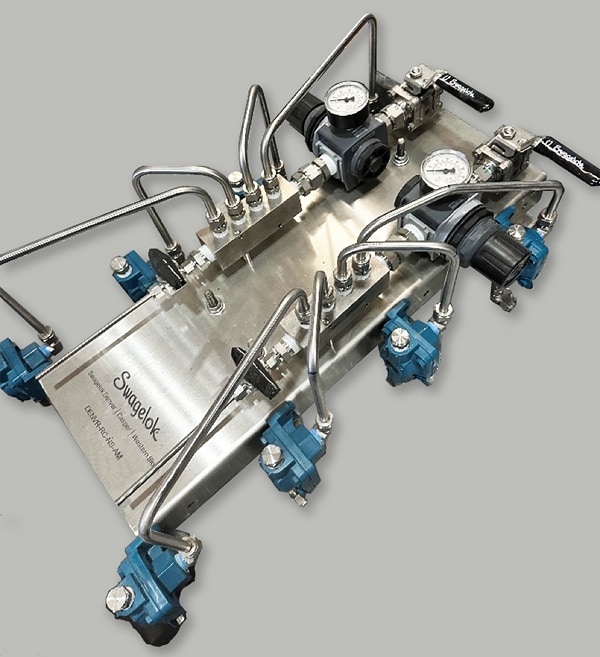

A Challenging Hydrogen Application.
Made Easier By Swagelok.
A leading global manufacturer of hydrogen storage systems had a complex build on their hands. Naturally, they turned to Swagelok. Our pros designed and built double block and bleed assemblies, and guided the company through component selection, tube routing and installation.
Get Your Swagelok Custom Solution Rolling
Just call 303-232-8844 to start the conversation with an in-house Engineer., Or email us at info@denver.swagelok.com

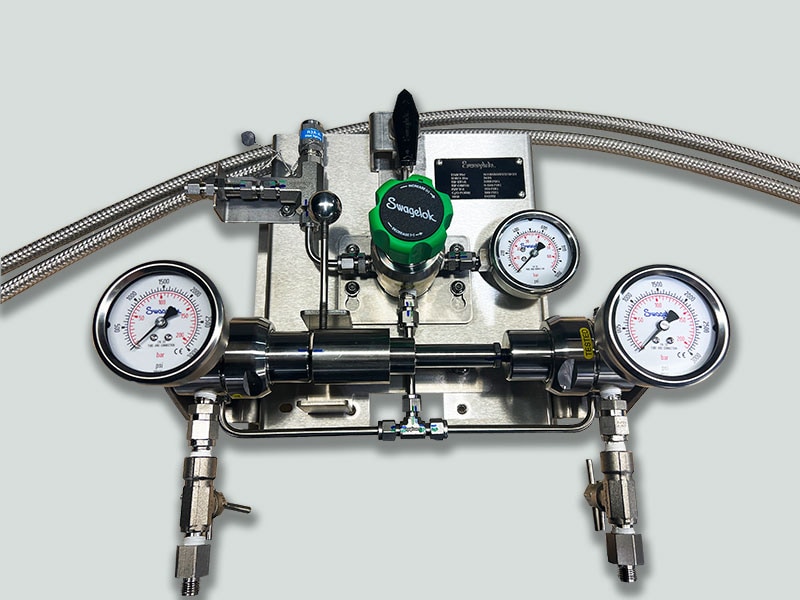

“Swagelok Makes Regulator
Changeover Assemblies?”
/suncor-changeover-regulator-assembly-(1).ashx)
To Order.
A large energy company needed to implement continuous gas delivery to critical seal flush systems for pumps. Swagelok’s changeover regulator assembly was tailor-made for the job. Our engineers developed and delivered a gas delivery system that improves pump performance, increases uptime, and allows greater flexibility than the previous single bottle solution.
Get Your Swagelok Custom Solution Rolling
Just call 303-232-8844 to start the conversation with an in-house Engineer., Or email us at info@denver.swagelok.com

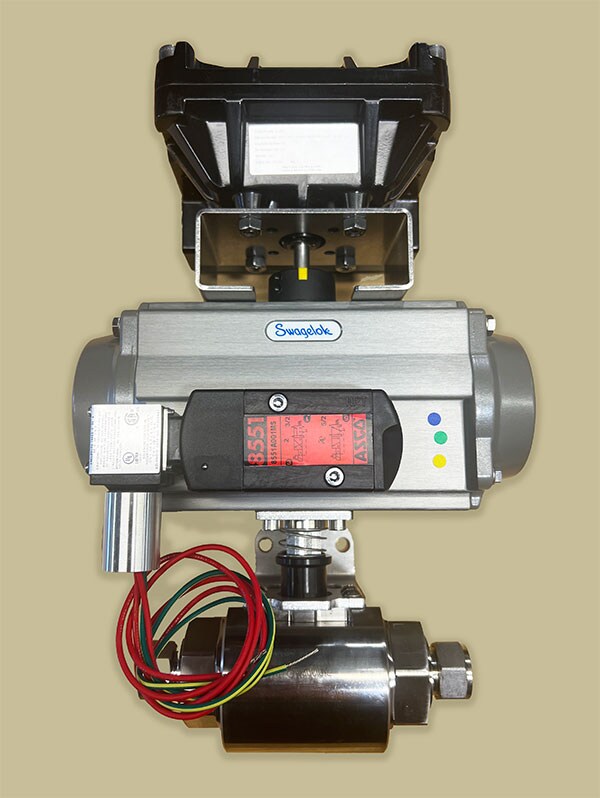

“When Did Swagelok Start Making
Actuated Ball Valve Assemblies?”
/sundyne-actuated-ball-value-assembly-600.ashx)
Longer Than You Think.
Swagelok’s actuated ball valve assembly met challenging requirements for a hydrogen compression system. The actuator/limit switch assembly for the valve met critical electrical requirements, and simplified integration with the overall remote monitoring system.
Get Your Swagelok Custom Solution Rolling
Just call 303-232-8844 to start the conversation with an in-house Engineer., Or email us at info@denver.swagelok.com
“Wait, Swagelok
Makes Air Panels?”
Yes! And Much More.
Processing baking soda demands significant valve actuation. And the company that makes the best air distribution panels for the job is Swagelok. Panels designed by our engineers save labor costs and sourcing issues by providing a plug and play solution.
Get Your Swagelok Custom Solution Rolling
Just call 303-232-8844 to start the conversation with an in-house Engineer., Or email us at info@denver.swagelok.com

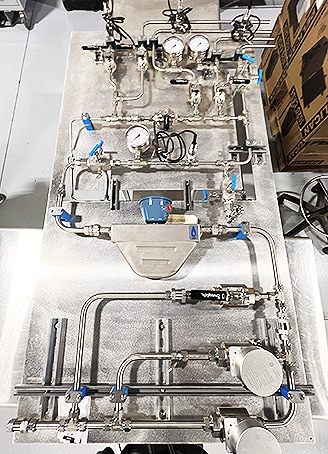

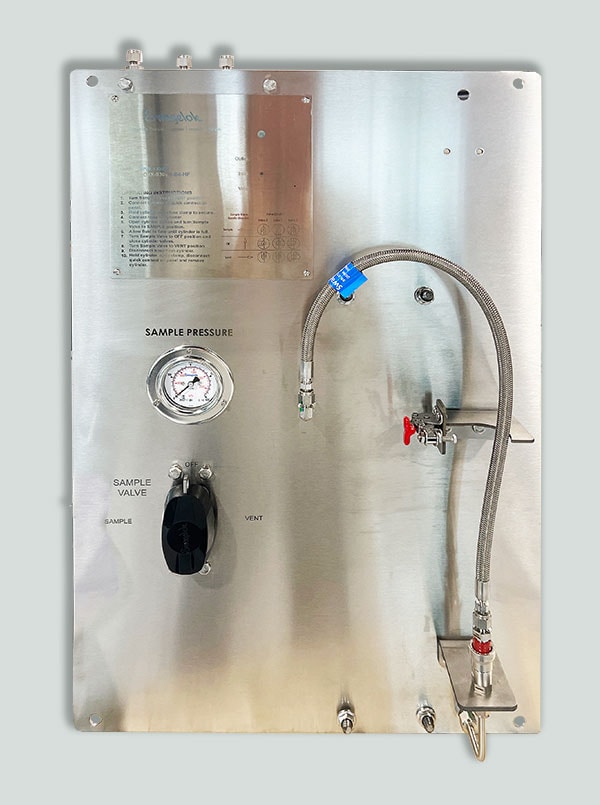

Why Are Swagelok
Customers So Happy?
Here’s A Sample.
A major refinery, a Swagelok client for years, continually discovers new reasons to tap into Swagelok custom solutions.
Currently, we’re installing new liquid and gas sample stations for the facility. Part of the installation includes on-site training and instruction for operators and lab personnel in the correct operation of the samplers.
Bottom line: A very happy Swagelok customer, who’s delighted with the level of design, build, knowledge, and meticulous support that comes with every Swagelok component and service.
